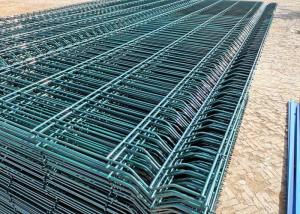

PVC Coated Welded Wire Grid Wire Mesh Fence
Product Description:
The wire mesh fence has the advantages of beauty, durability, no deformation and fast installation.
It is an ideal metal guardrail product. It can not only make a long-term mesh wall, but also be used as a temporary isolation net.
It can be realized by using different column fixing methods.
It has the characteristics of rust prevention and weather resistance. The treatment forms can be electroplating, hot plating, plastic spraying and plastic dipping. Characteristics of highway guardrail: the grid structure is simple, convenient for transportation, and the installation is not limited by the topographic relief, especially for mountainous areas, slopes and multi bend areas.
The product is firm and durable, the price is medium and low, and is suitable for large area use.
The wire mesh fence can be custom made by our factory, each fence panel comes with a post and accessories .
Feature:
- High strength
- Strong decoration
- beautiful and generous
- solid and anti-theft
- Good steel
- Beautiful shape
- Wide field of vision
- simple structure
- nice appearance
- Wide view and easily installation.
- It’s a semi-opaque fence due to the open weave
- It not obscure sunlight from either side of the fence
- thoroughly sealed and protected against rust and corrosion
Quick Detail:
| Specification of wire mesh fence |
| Mesh Size (mm) | 50x100, 50x150, 50x200,55x100,55x200 |
| Panel Size (m) | 2x0.63, 2x0.83, 2x1.03, 2x1.23, 2x1.43, 2.5x1.63, 2.5x1.83, 2.5x2.03, 2.5x2.23, 2.5x2.43 |
| Post Size (mm) | 50x70, 70x100, 50x50, 60x60, (square hole) φ32,36,38,40,42,48(round post diameter) |
| Wire Diameter (mm) | 3-6mm as customer’s request |
| Surface Color | Green, blue, black, white, yellow,etc. |
| Post Type | Peach post, square. Holland, T-type, Y-type post |
| Modular fencing system | Panel size (L*H) mm | Post height mm | Number of bending folds |
| 2405*1270 | 1500 | 2 |
| 2405*1570 | 1850 | 2 |
| 2405*1720 | 2130 | 2 |
| 2405*2000 | 2450 | 3 |
Surface Treatment could be Galvanized or PVC coated.
NOTE: There’re common specifications of products. Non-standard can also be customized as customer's request.
| Post Type | Post Size |
| Square Post | 50x70mm, 70x100mm, 50x50mm, 60x60mm |
| Round Post | 32mm, 36mm, 38mm, 40mm, 42mm, 48mm |
| Peach Post | 50x70mm, 70x100mm |
Production Process: Wire Drawing → Wire Straightening & Wire Cutting → Welding → Folds / Curves Bending → Electric Galvanizing / Hot-dipped Galvanizing → Parkerizing → PVC Coating / Spraying → Packing → Loading
1. who are we?
We Baodi company is located in Hebei, China, start from 2008, sell to North America(50.00%), Europe(30.00%),Asia(20.00%). There are total about 50 people in our office.
2. how can we guarantee quality?
We can supply free sample before mass production.
We'll do double Inspection before shipment.
3. what can you buy from us?
Many kinds of wire mesh, such as welded wire mesh, woven wire mesh, wire mesh fencing and perforated metal mesh.
4. why should you buy from us not from other suppliers?
Factory located in China, always supply high quality & good price wire mesh to customers.
Product Tags:
|
|
Antirust 50x150mm Wire Mesh Security Fence Pvc Coated Welded Grid Images
|
